Uc 04

5.500 kcal/h

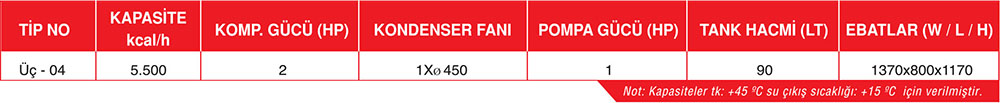

Technical Specifications

Compressor

The low-capacity cold water requirement is for industrial facilities, plastic injection machines, sole injection machines, metal injection machines, extruders, profile - pipe - cable and closed circuit air conditioning systems, and they are preferred devices in terms of ease of maintenance with the service assurance of ÜÇSAN. It is healthy in terms of time and production, and provides a capacity increase of 25-30%. Water loss calcification surface is 0%.

Compressor

Hermetic type American Tecumser or equivalent and European origin semi-hermetic open type refrigeration compressors are used in our devices. They have a crankcase heater and a protective role. Suction and discharge outputs are used as communication receivers and they work with 380 volt-50Hz… mains current.

Conderser

Copper pipe – has aluminum fins and feeds the evaporator by providing liquefaction of freon gas by means of silently working radial fans.

Control Panel

It is placed on the device and has an electronic digital display. It ensures the fully automatic and safe operation of the system.

Water Pump

They are high efficiency pumps with mechanical seal. It has undertaken the task of circulating the water it absorbs from the installation in the tank and pressing it into the installation again.

Evaporator

It has copper tube-aluminum fins. The evaporator in the water tank allows the freon gas to evaporate and keeps the water temperature at the desired value.

Water Tank

It is the tank where the water is stored. It is made of stainless steel sheet and is isolated with imported rubber, preventing heat exchange with the environment.

Outer Body

It is a fan made of special 3mm sheet metal and painted with acrylic. Condensing fan is axial or radial fan, it is Italian origin and has silent operation feature.
